Steel Detailing - Sample Drawings

Just a few samples below. If you want to see more examples, just ask!

We utilize the latest technologies to provide accurate details in a timely manner. We normally provide drawings as Arch D (24x36) or Ledger (11x17) plot files. However, if you prefer the drawings in another format or alternate paper size, we will comply with your standards. Optional: Provide us with your company's title block to be used for your shop drawings.

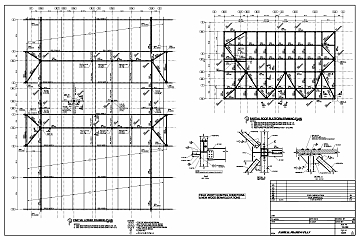

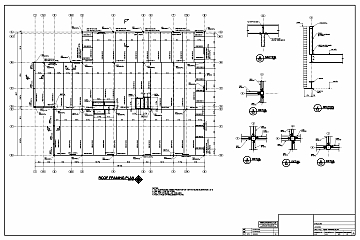

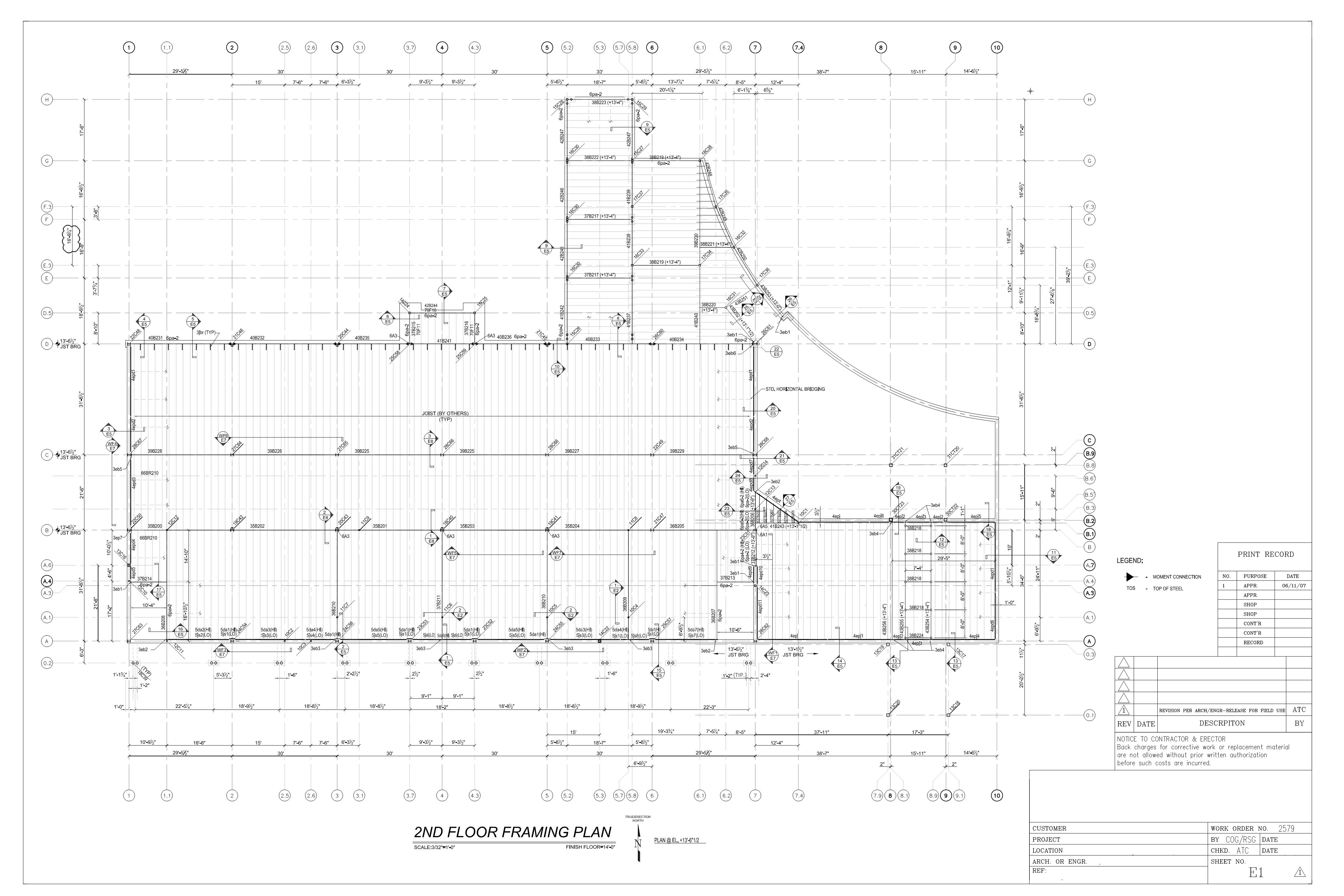

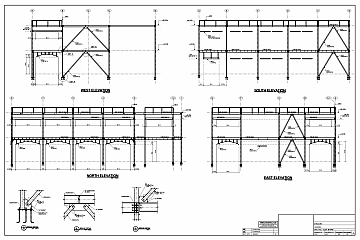

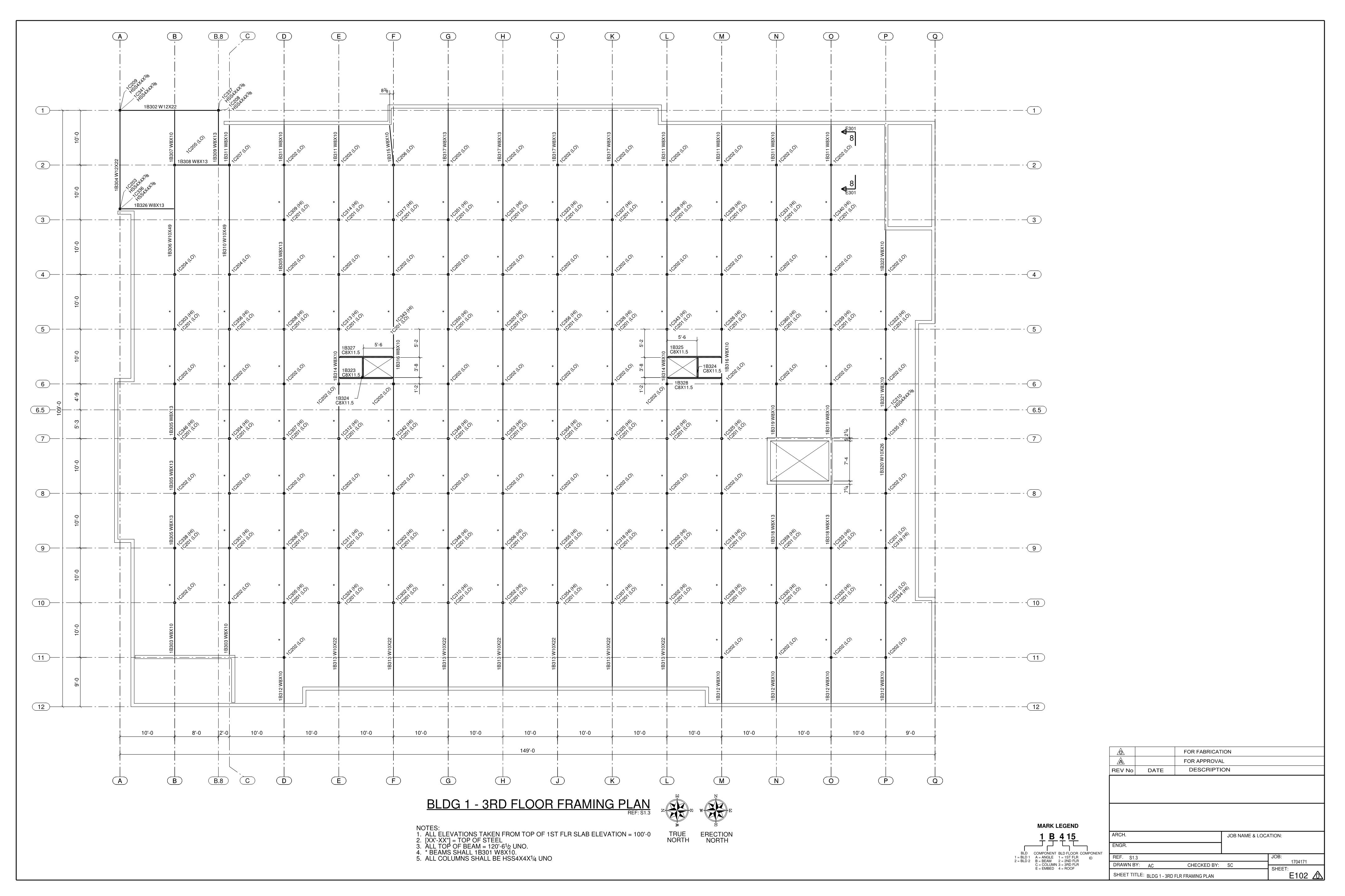

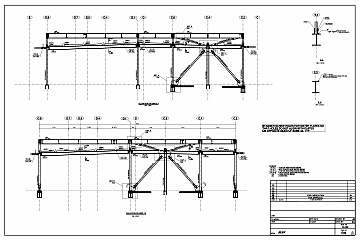

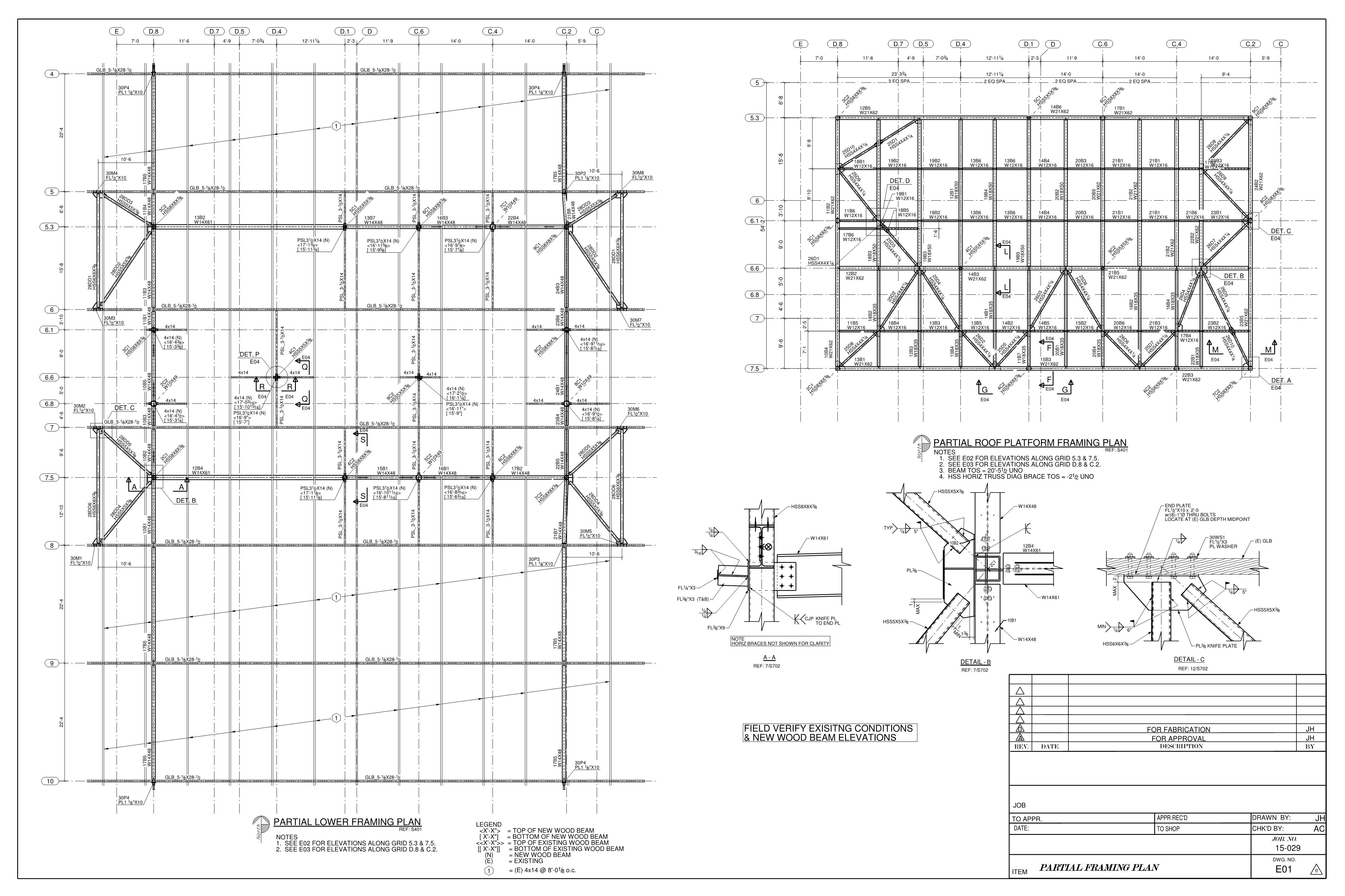

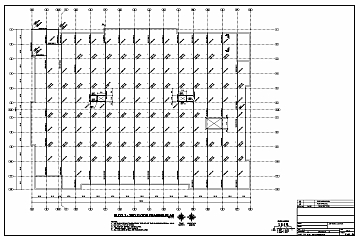

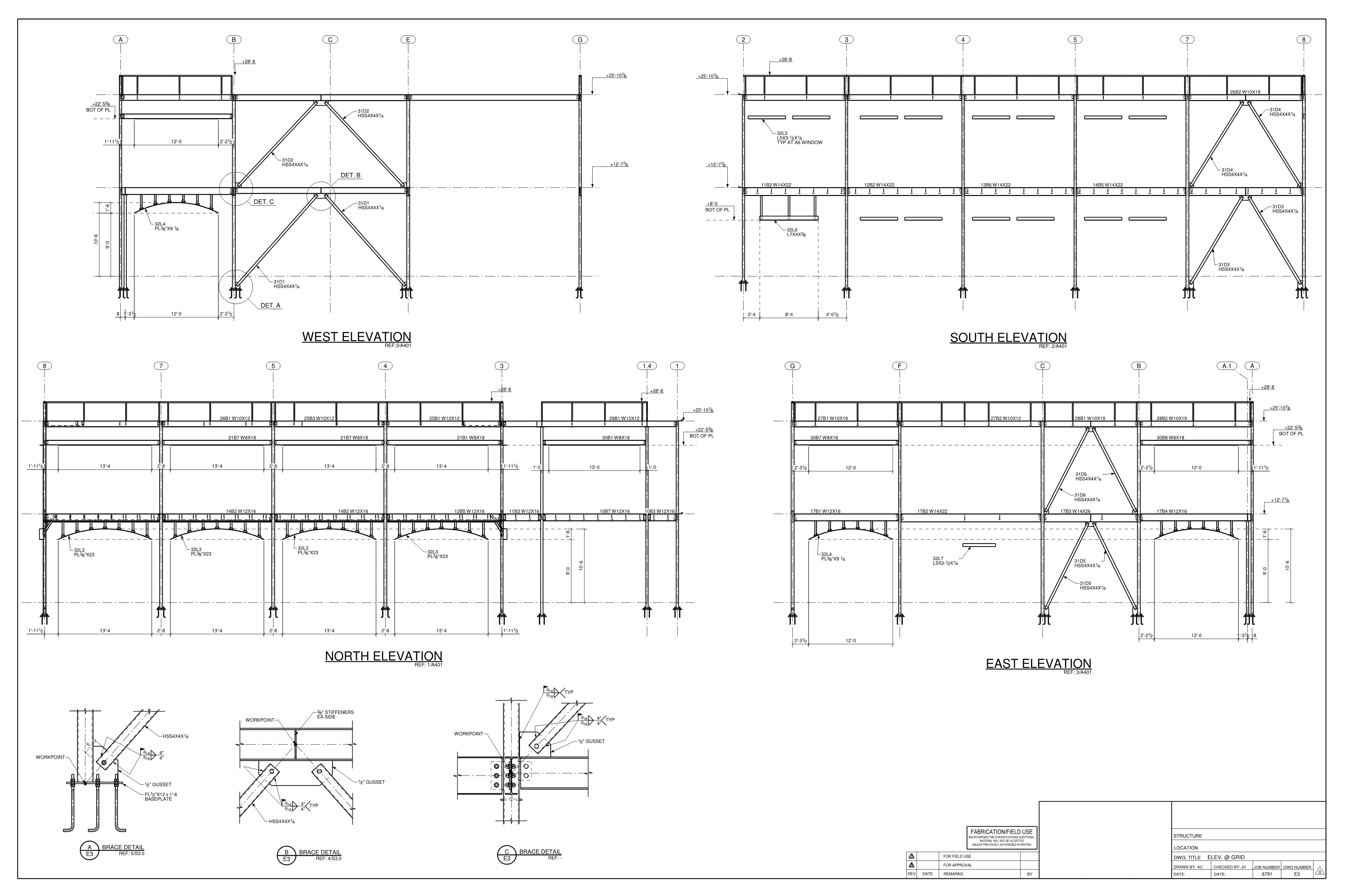

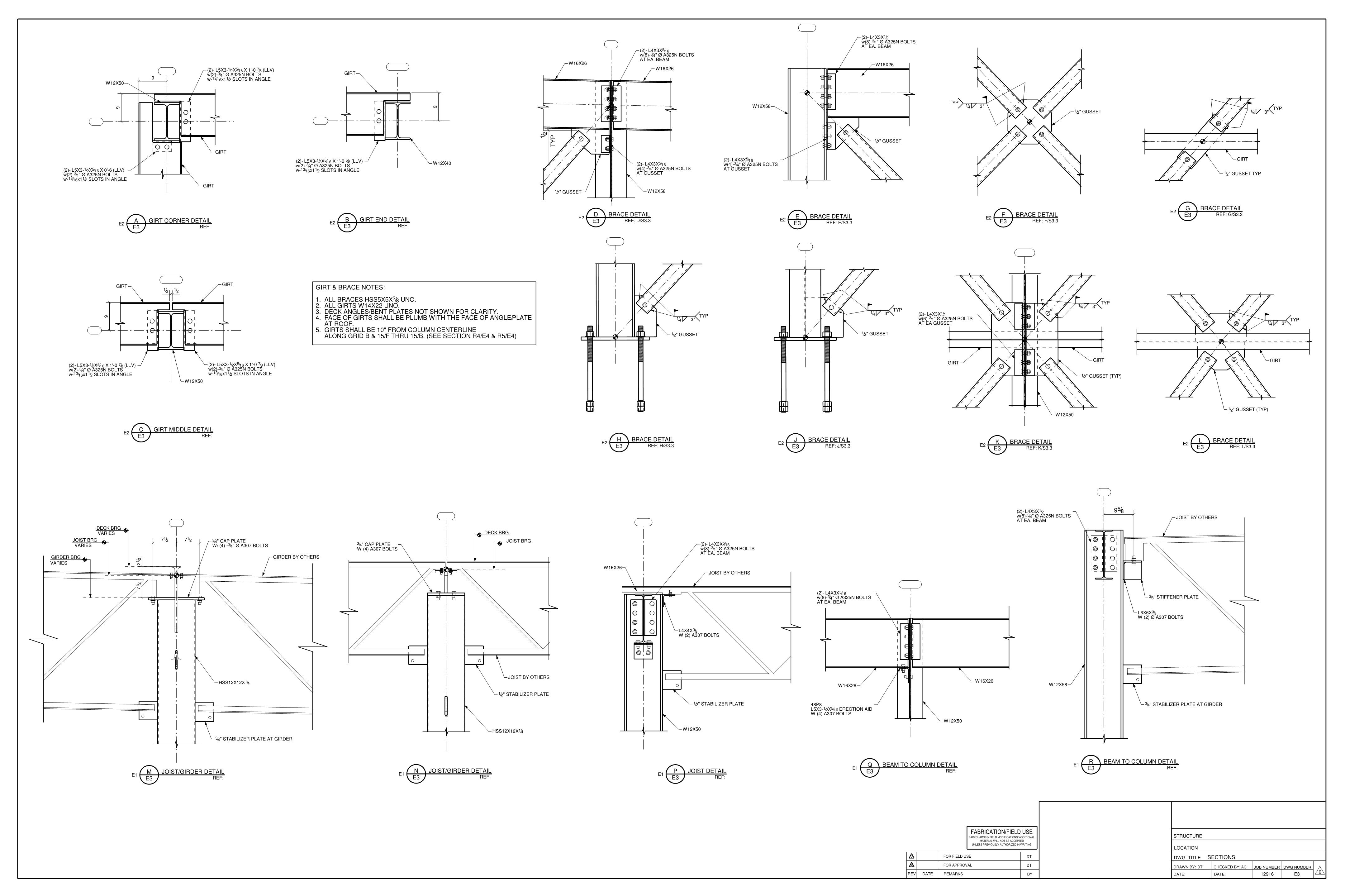

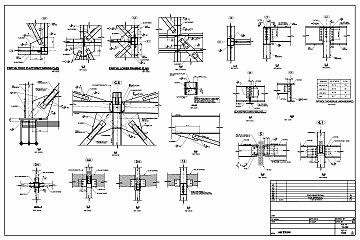

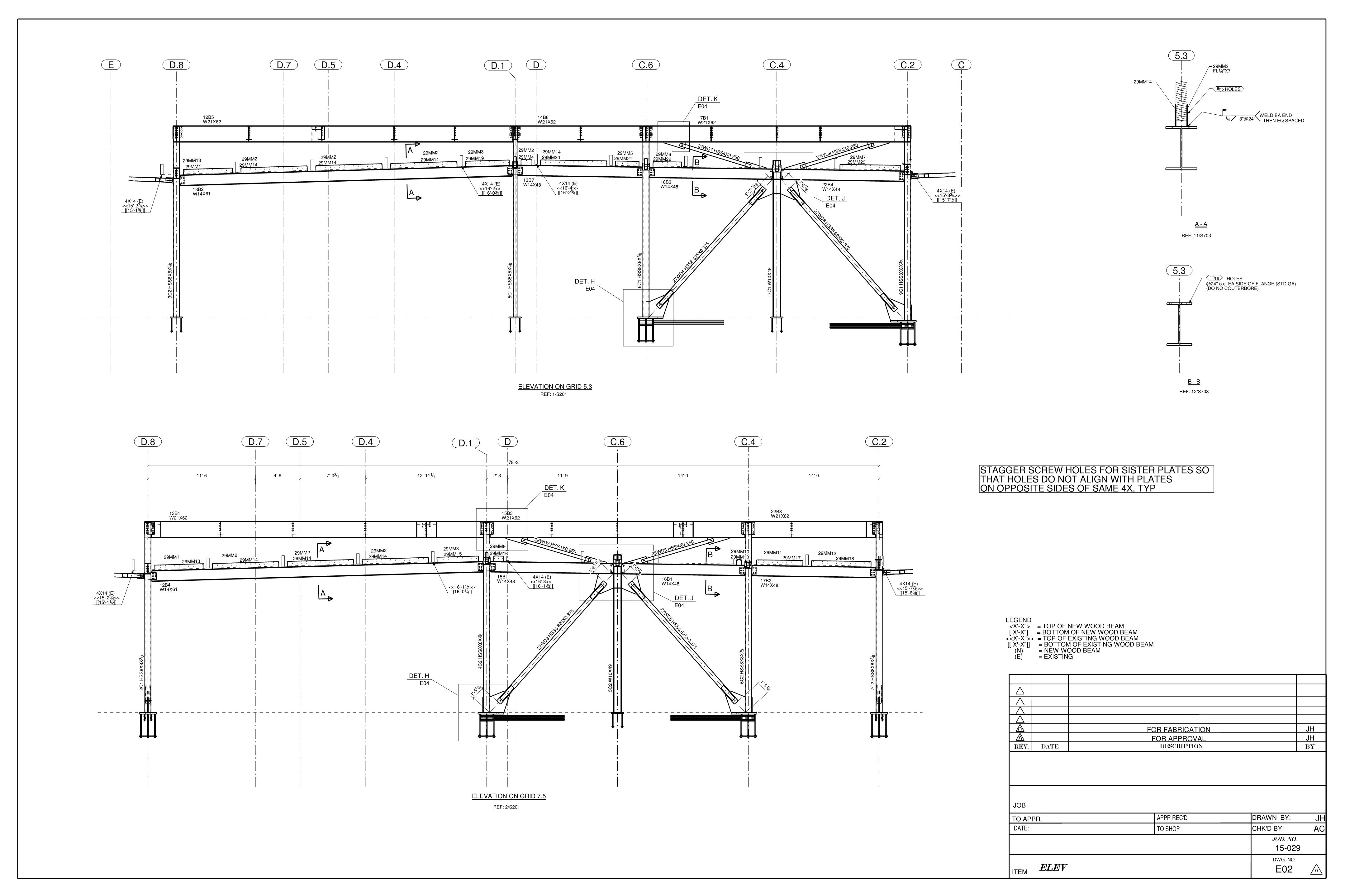

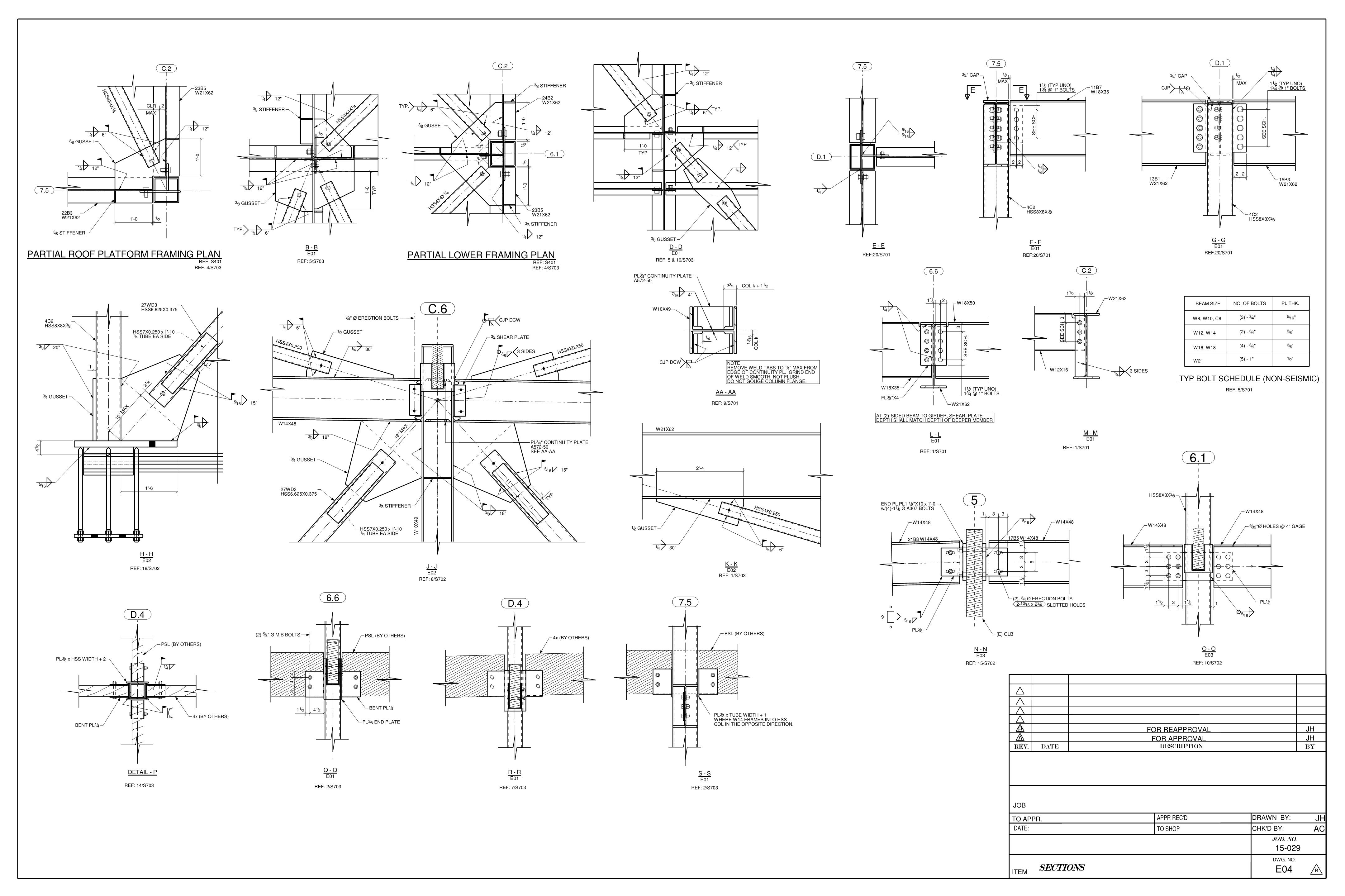

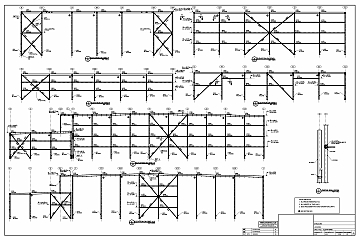

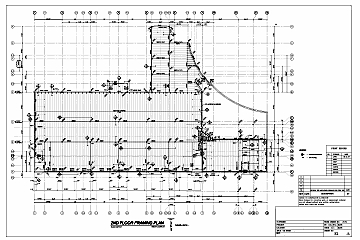

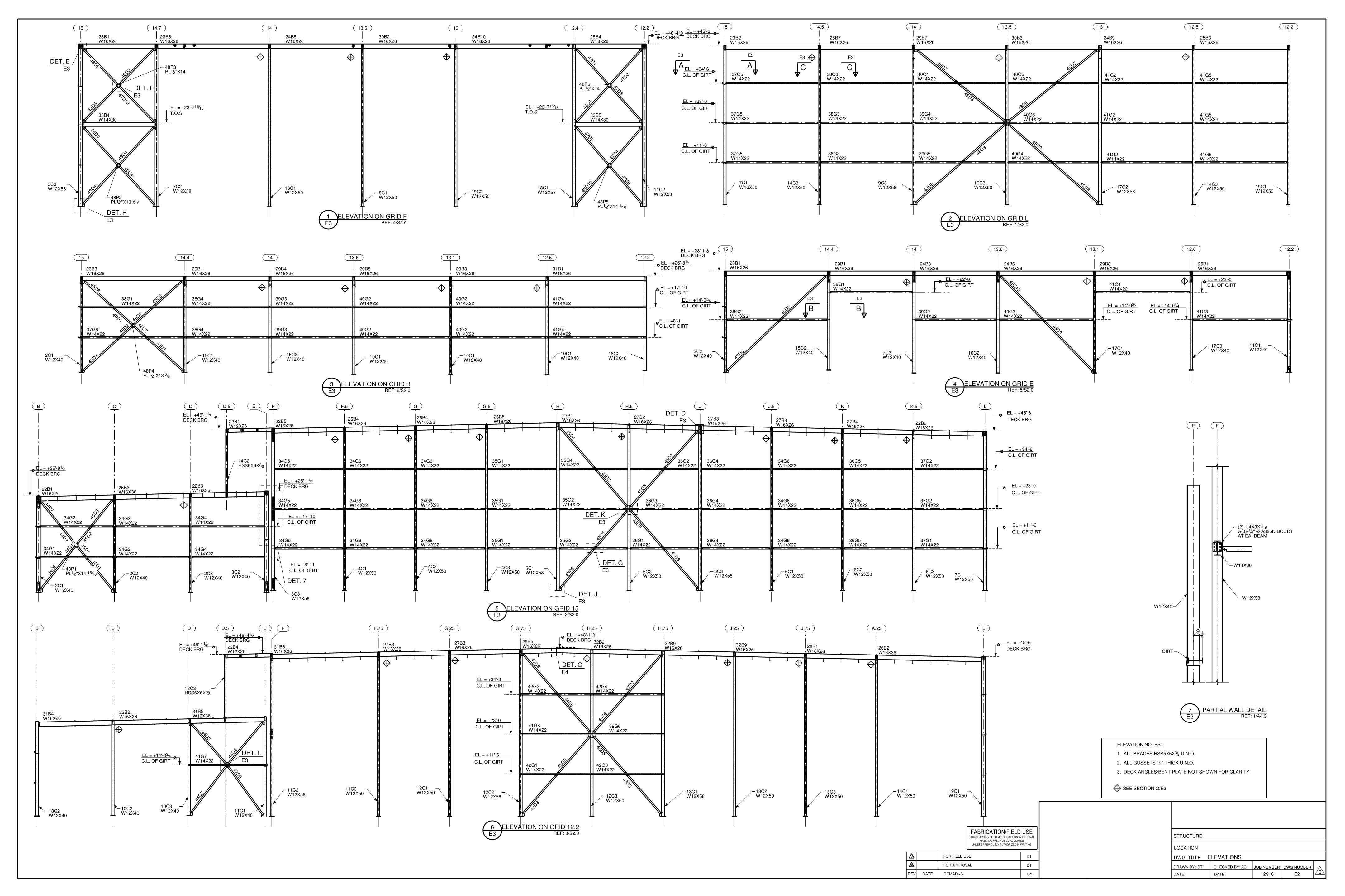

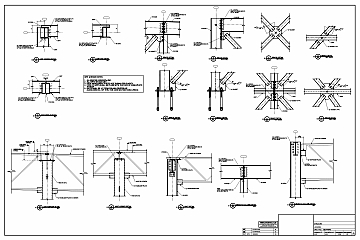

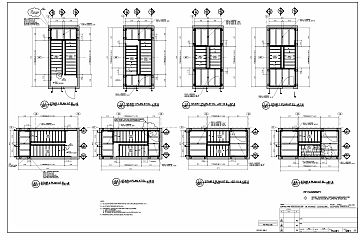

Erection Drawing Samples

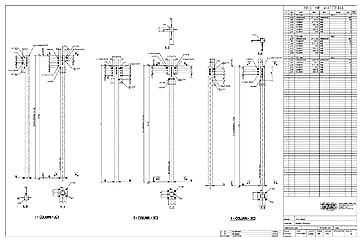

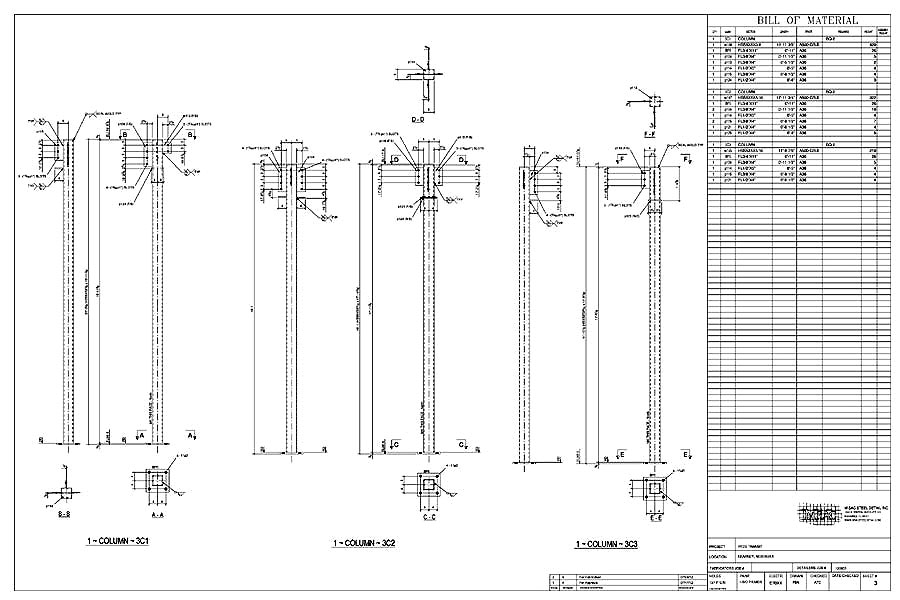

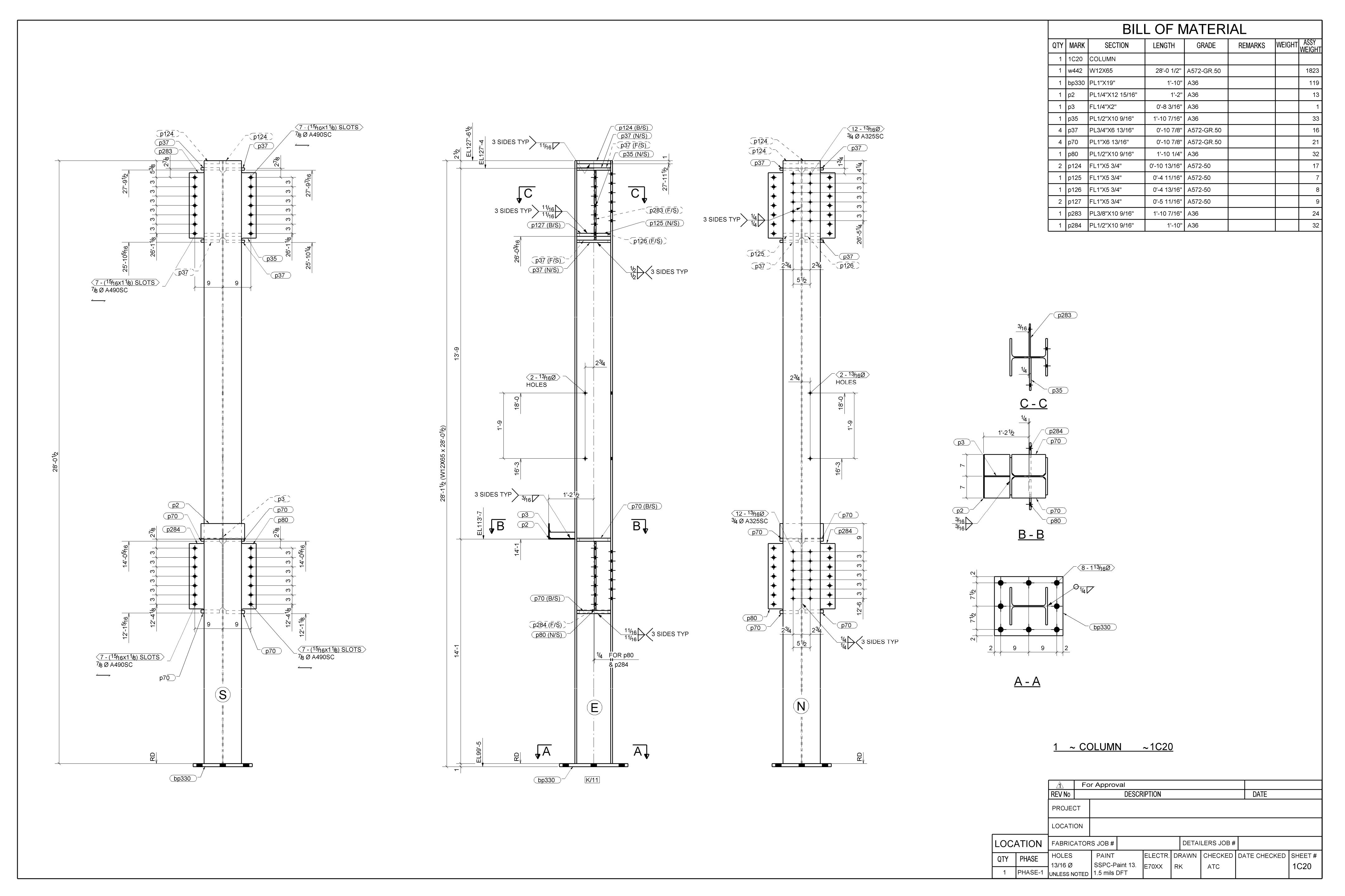

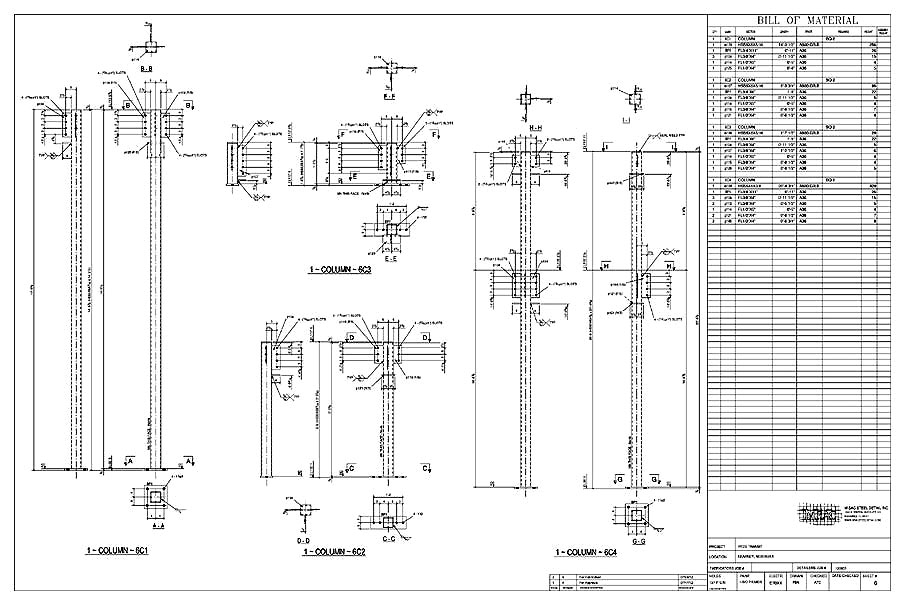

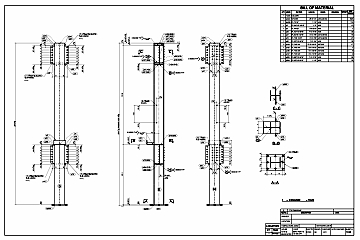

Column Detail Samples

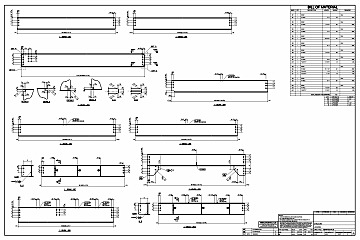

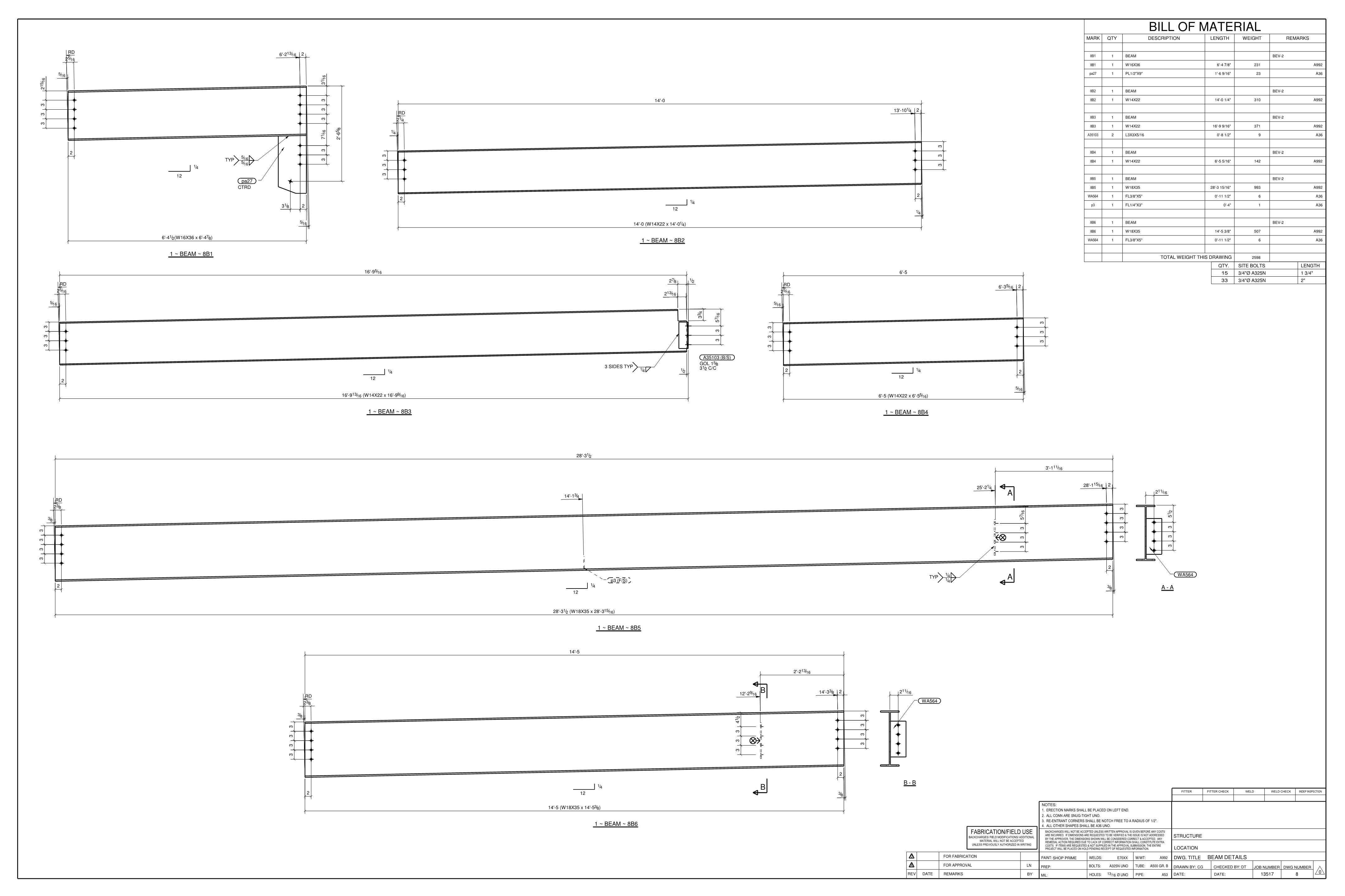

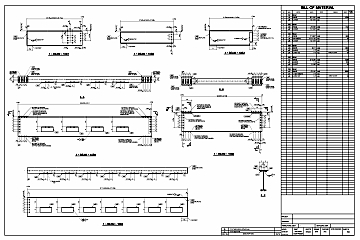

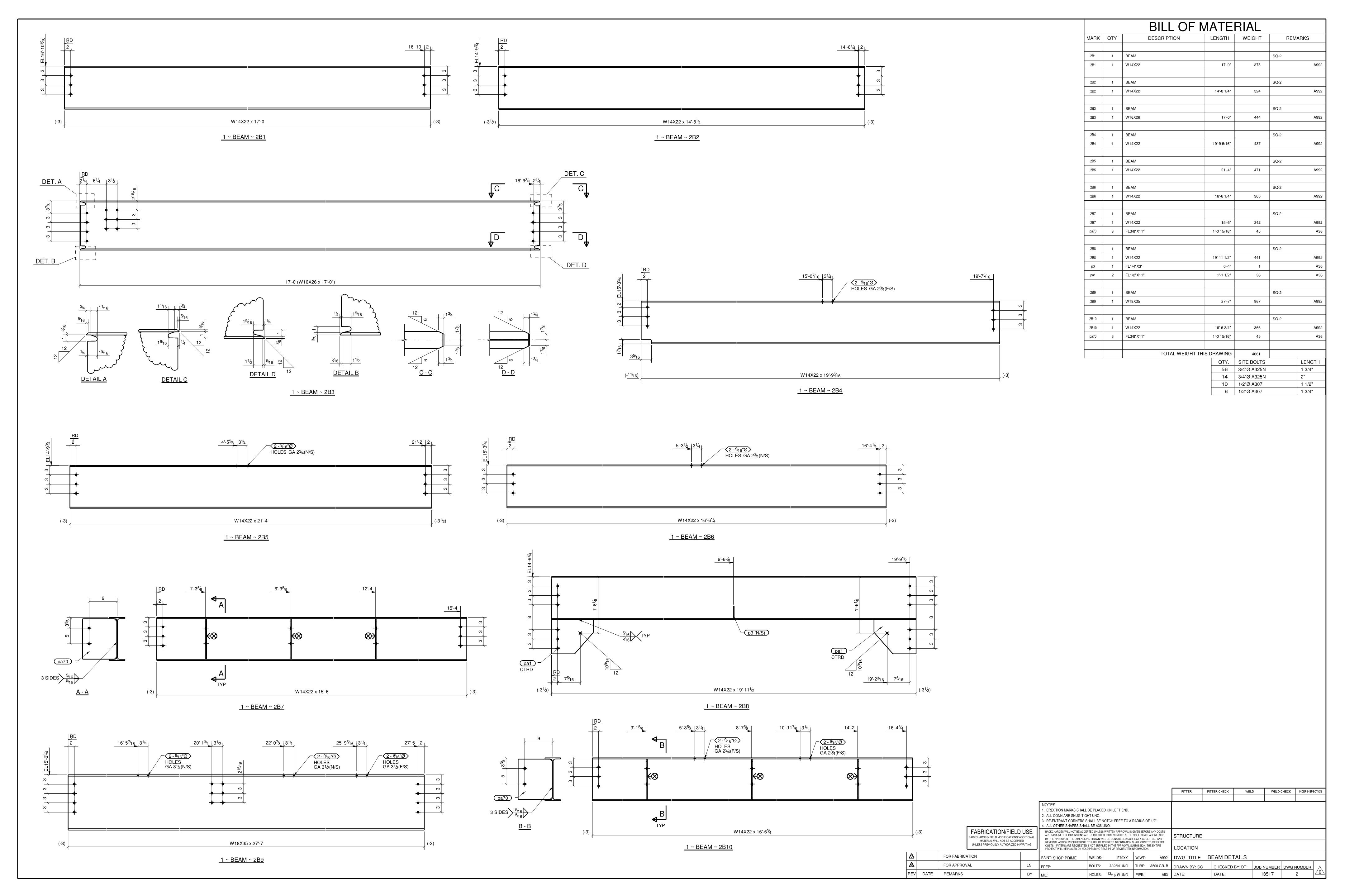

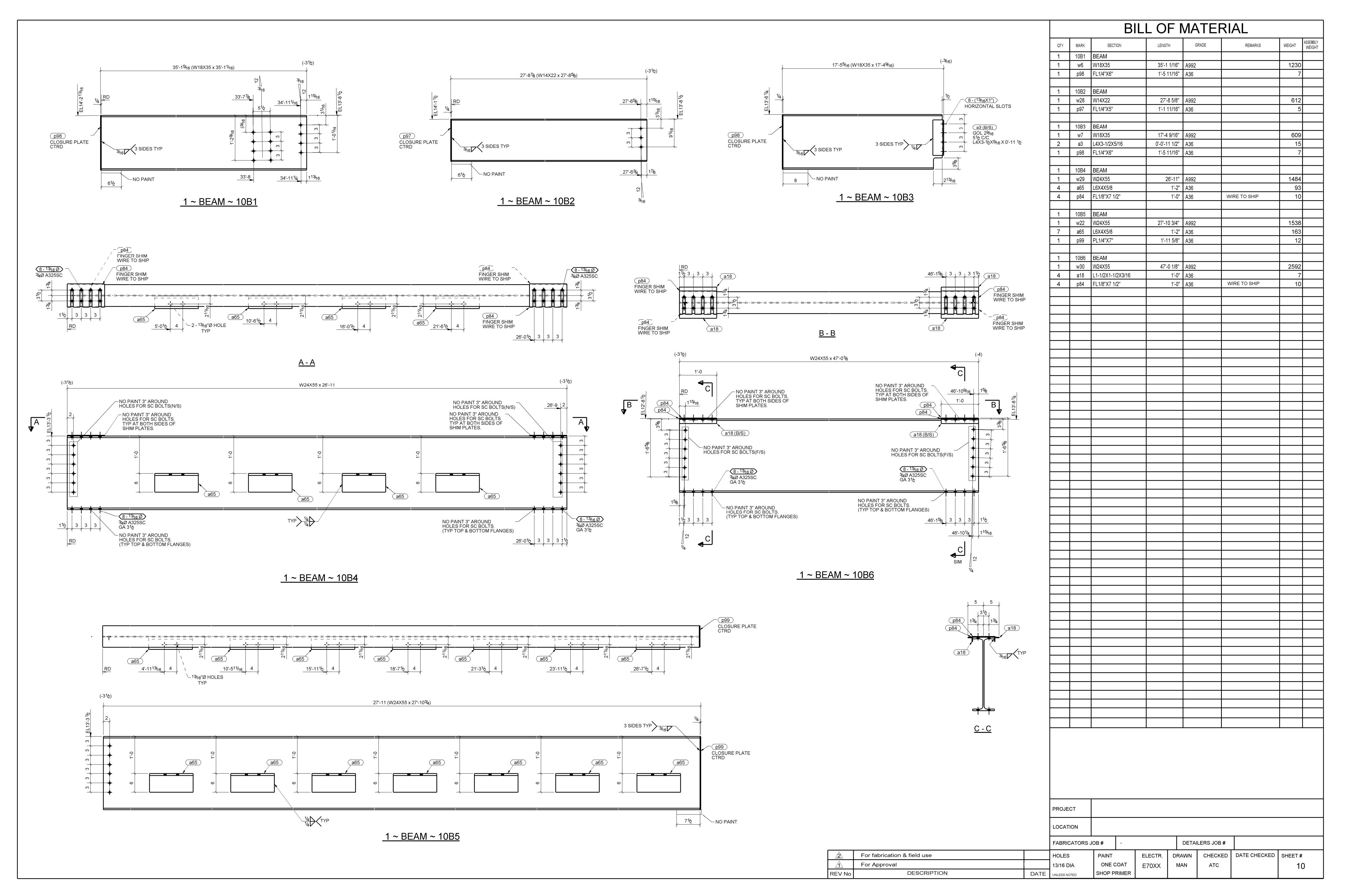

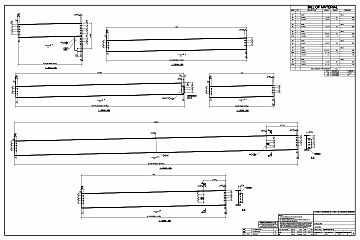

Beam Detail Samples

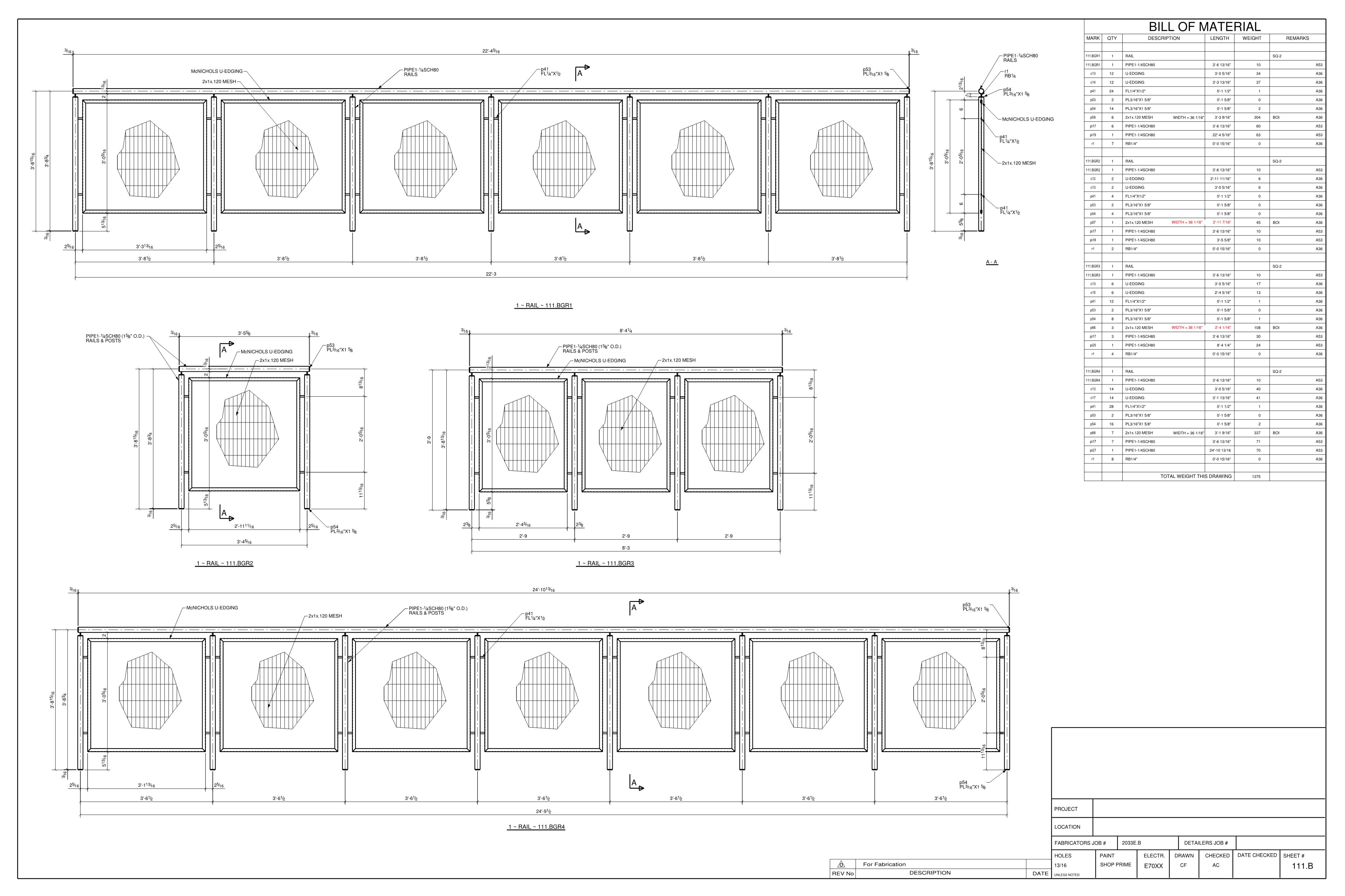

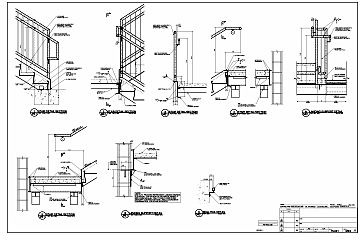

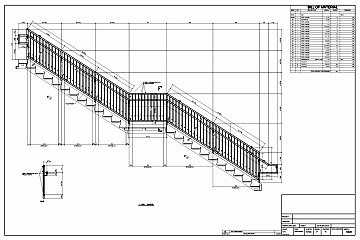

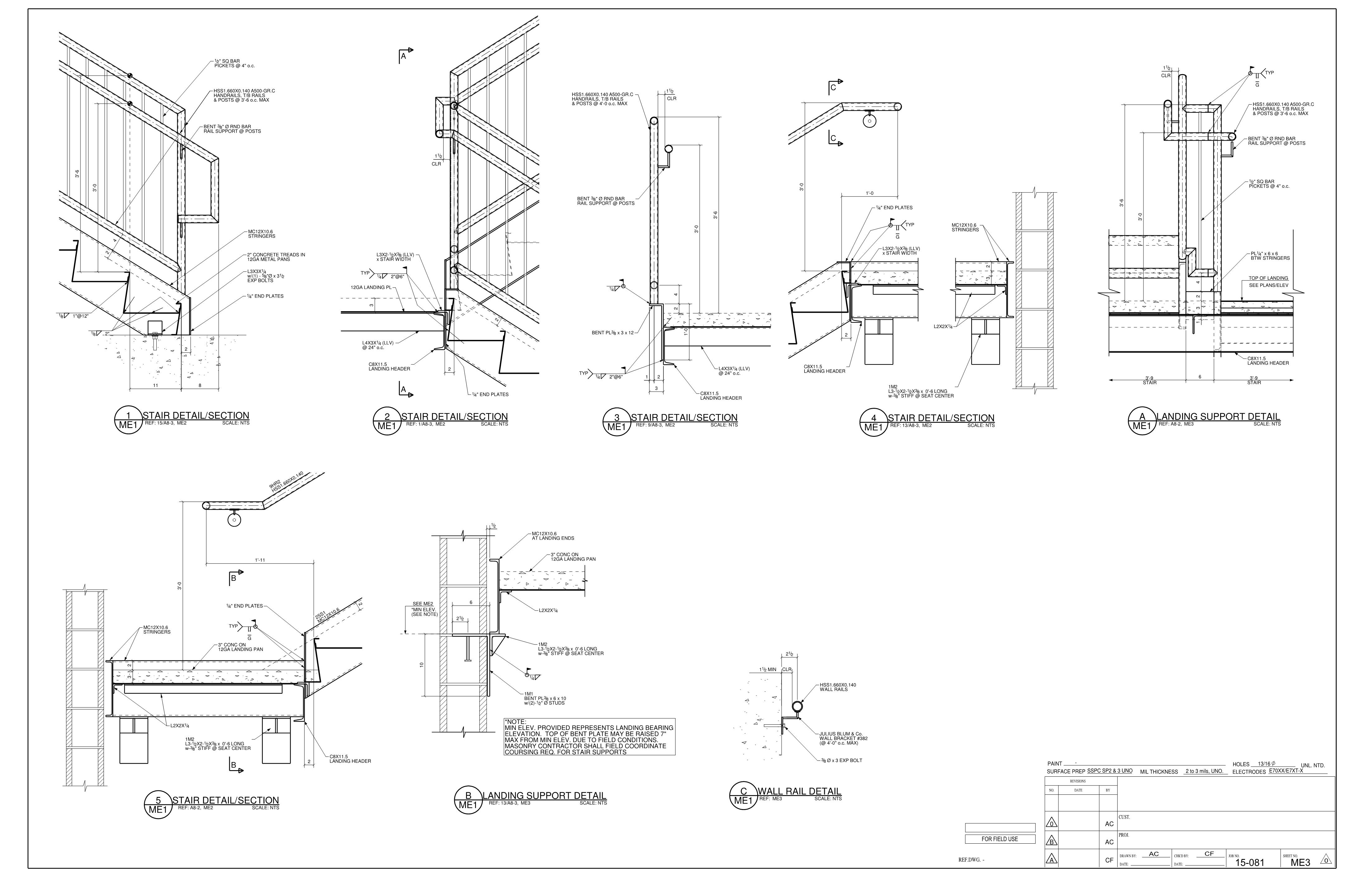

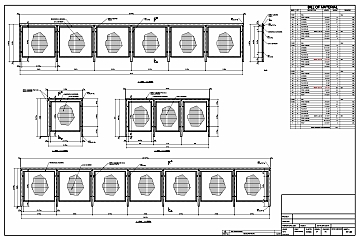

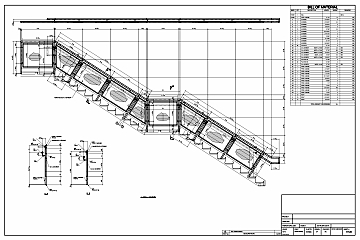

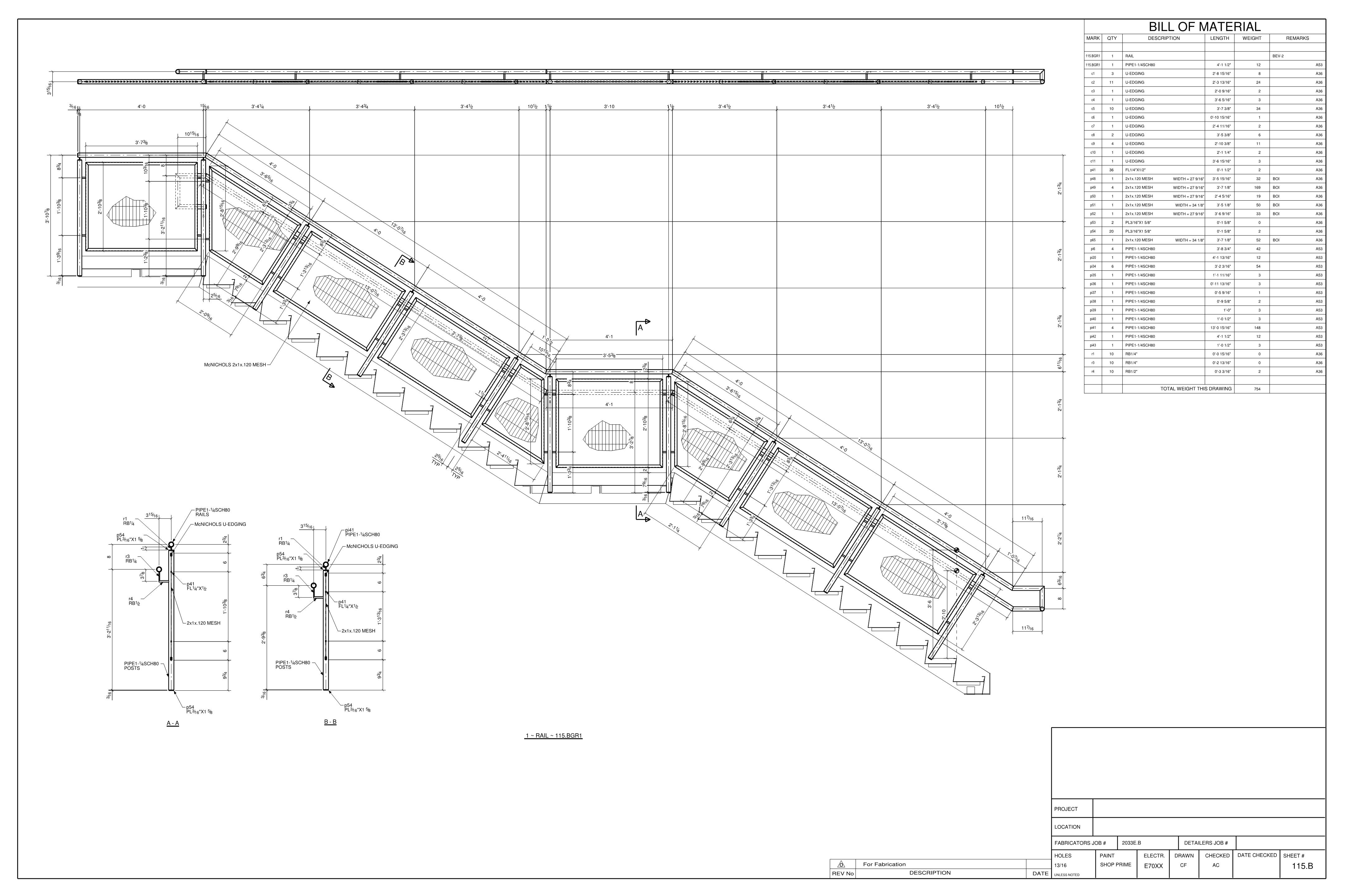

Railing Detail Samples

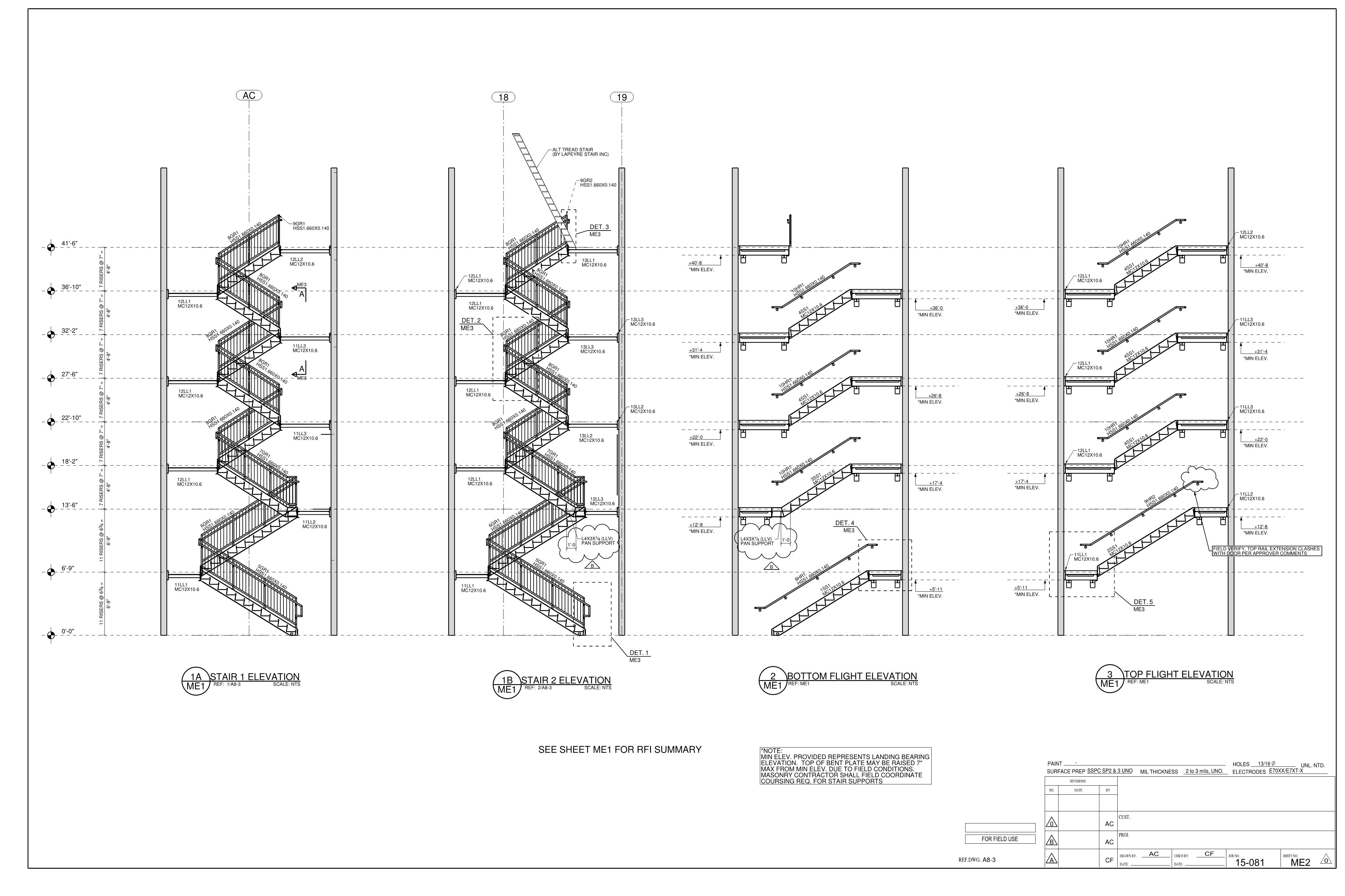

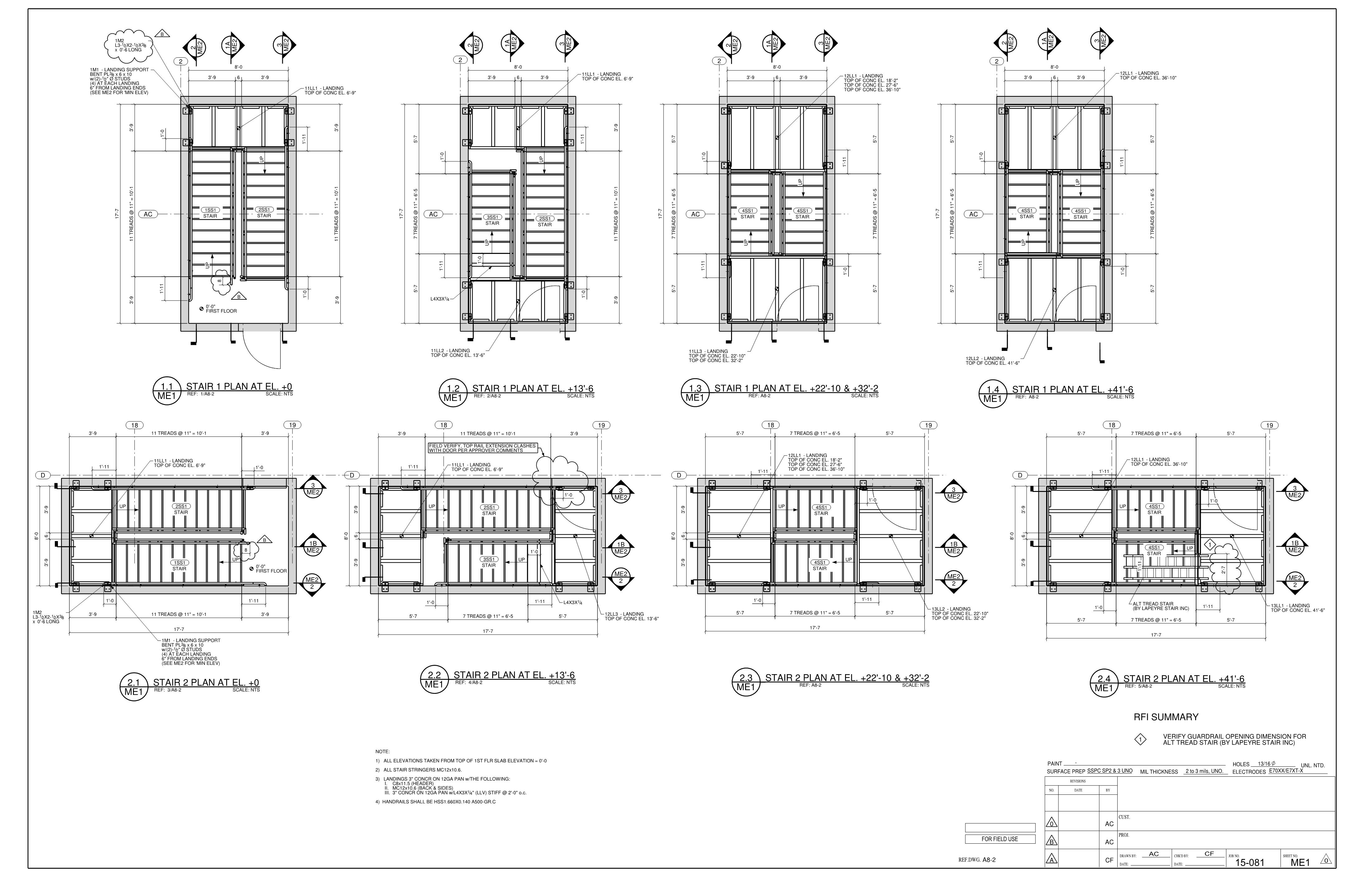

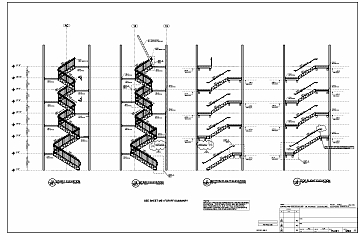

Stair Erection Drawing Samples

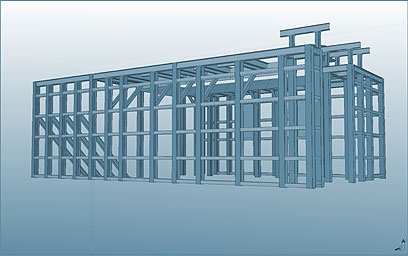

Snapshots: Tekla Structures Model vs Actual

View Interactive Floorplan

Design & Model...

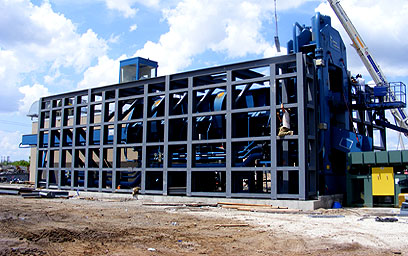

...Fabricate & Erect!

Want More Examples?

The above snapshots are for website purposes.

Contact one of our sales team representatives so we may provide you with complete samples on some of our previous projects.

Our company has an excellent track record for providing impeccably accurate details in a timely manner. We will not hesitate to provide you with actual sample projects. We can also provide you with references from some of our current customers.

BTW, we're nationwide!
