Steel Detailing - Framing Plan

M-SAC Steel Detail

We provide the highest quality of finished projects in the industry. Boasting unmatched turnaround times, and superb accuracy - it's no wonder fabricators are turning to M-SAC for all their needs!

Steel Detailing - Columns

What is Steel Detailing?

Structural steel detailing is the production of shop drawings for a steel fabricator. We coordinate the architectural and engineering drawings, even provide BIM, to exact specifications for the fabricator.

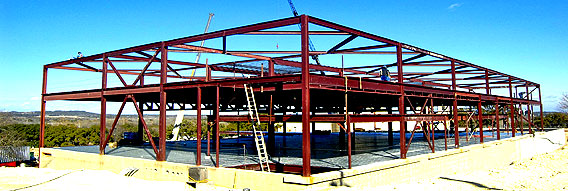

Steel Detailing - Framing Plan

Buzz Worthy.

Fabricators from all over the world are inquiring about our services. Please do not hesitate to give us a call today. We will get you in touch with a contact person as soon as possible to answer any questions you may have.

Steel Detailing - Stairs

Made in the U.S.A.

Enjoy the peace of mind and convenience of dealing with a U.S. based company. With our headquarters in sunny central Florida, never worry about a time difference or communication barrier again.

Other Services

This stuff is right up our alley:

  • BIM modeling, CAD, CNC
  • erection drawings, columns, beams
  • stairs, guardrails, miscellaneous

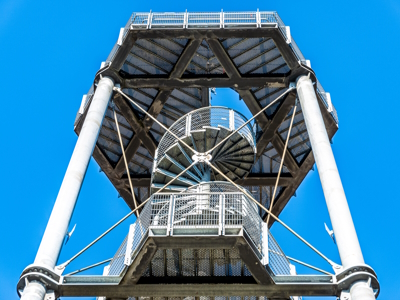

    We specialize in curved stairs!

  • free automation reports (NC1, DXF, KISS, etc.)
  • project management software

Technology, oh yea!

Software is only as good as the user!

  • Tekla Structures

    BIM - Building Information Modeling
  • Autodesk AutoCAD

    World's Leading Design Tool
  • Construction Management

    Project Management Software

    We built this in-house, for YOU.


    RFIs, messages, and tasks in one place. Assign internal tasks within your company. Assign external tasks to us! Keeps track of the latest working set for you (down to the latest revision per sheet). Heck, it even connects to Google Calendar!

    Yes, it's FREE. Go on... Sign Me Up!
